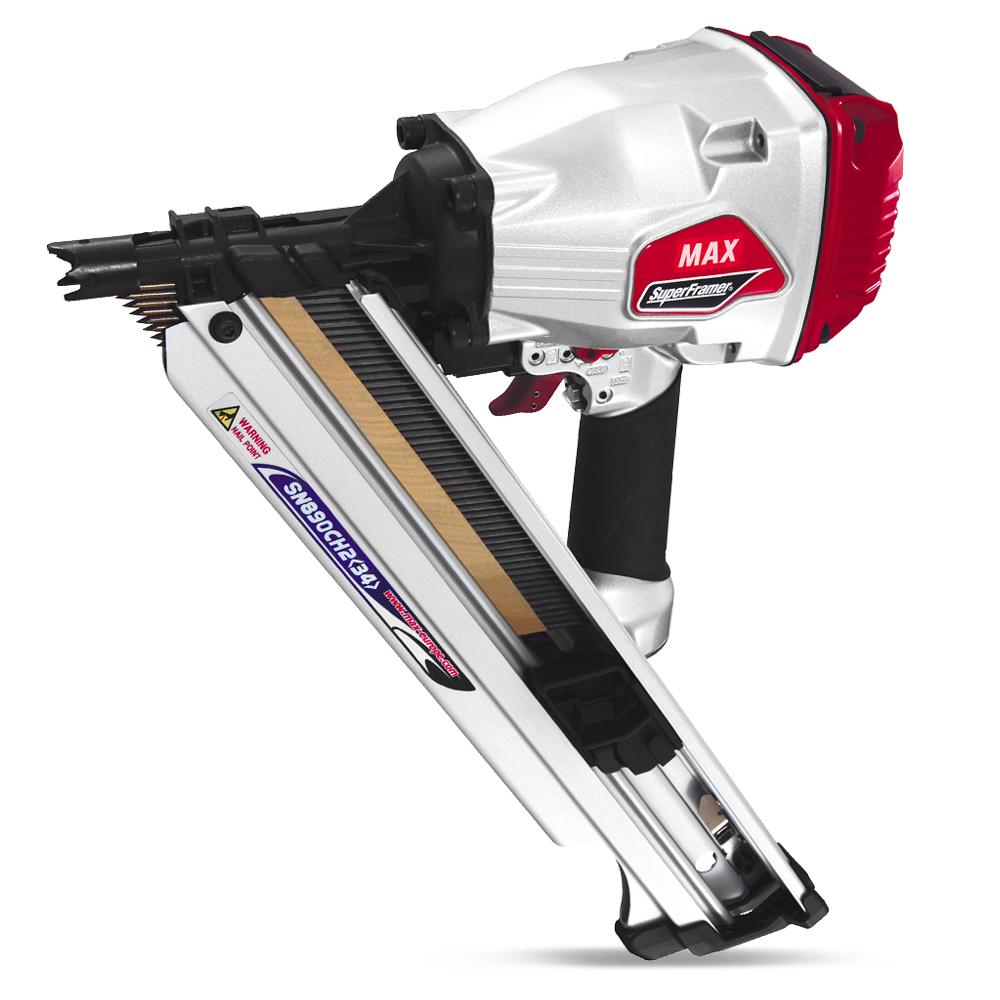

SN890CH2/ 34
34 Degree Framing Offset/Clipped Head Stick Nailer up to 90mm
The MAX SN890CH2/34 SuperFramer is a top of the line 34 degree professional grade pneumatic clipped head framing nailer. The SN890CH2/34 can be used for framing application.
Applications
- Framing
Description
- Includes 2 triggers. Factory installed sequential trigger and a contact fire trigger
- No special tool is required to switch the triggers.
- Patented maintenance free end cap filter prevents foreign substances from entering the tool.
- The filter has a self-cleaning feature; Foreign substances are automatically ejected from the tool when the air hose is disconnected.
- Dial adjustable depth control allows depth adjustment with no special tool.
- Pointy teeth on contact arm allows the user to get a firm grip when toe-nailing.
- Open nose for easy jam clearance.
- Compact design less than 316mm in height
Specifications
| WEIGHT | 3.3 KG |
| DIMENSIONS | 316mm (H) x 121mm (W) x 435mm (L) |
| MINIMUM OPERATION PRESSURE | 5 bar |
| MAXIMUM OPERATION PRESSURE | 8 bar |
| MAGAZINE CAPACITY | 90 |
| DEPTH CONTROL | Yes |
| JAM CLEARING | No |
| TRIGGER TYPE | Selective Action Trigger (Sequential/ Rapid) |
