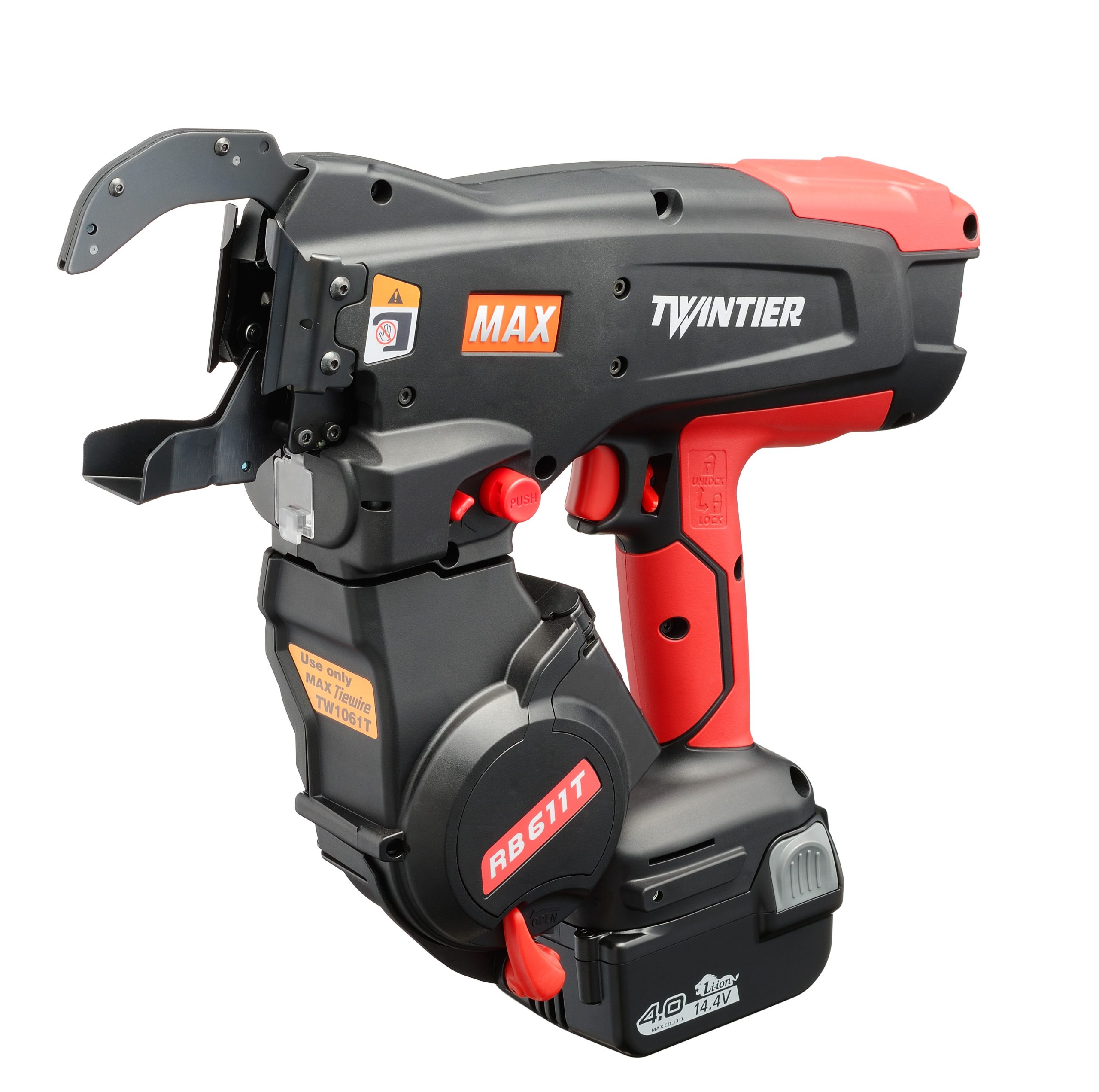

RB611T

Rebar Tying Tool up to 32mm x 29mm with 1.0 mm wire

RB611T “TWINTIER” is a 7th generation of Max REBAR-TIER products for larger rebar combination up to 38mm x 16mm x 16mm, the most advanced cordless Re-bar tying machine. The TwinTier mounts 3 new innovative mechanisms making it the most efficient rebar tying tool on the market.

Applications

Precast Plants
Foundations
Road and Bridge
Floor decking
Floor heating
Building floor

SKU: RB611T Categories: Max, Rebar Tags: Bridge Building, Building Foundations, Cross-Tying Bars

Description

DOUBLE THE SPEED
WIder range to tie from 16mm x 16mm to 38mm x 16mm x 16mm. The Dual Wire Feeding Mechanism increases productivity.
COST SAVINGS
The Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie reducing wire usage.
THE TWINTIER
The TwinTier can tie 4000 ties per battery charge and up to 240 ties per coil of wire (on 13mm x 13mm rebar).
SHORTER TIE HEIGHT
The TwinTier’s Wire Bending Mechanism (Pat. Pending) produces a shorter tie height. Less concrete is needed to fully cover a wire tie.
A LARGE JAW
A large jaw enables the TwinTier to tie up to a 22mm x 22mm rebar.
SLIM ARM FITS
Slim arm fits easily at a 45 degree angle for tight ties.
AN EASY PUSH GEAR
An easy push gear release effortlessly opens gears to quickly feed wire when loading the tool.

Specifications

Minimum ties per coil	115
Maximum ties per coil	205
Applicable wire product/ga	TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga
Applicable rebar size	16 x 16 - 32 x 29, up to 38 x 16 x 16, 25 x 25 x 16 x 16(Unit: mm)
Ties per charge	4000
Tie speed	Approx. 1/2 sec
Tie wraps	2
Battery charge time	65 minutes full charge ( 50 minutes 80%)
Battery	JPL91440A
Charger	JC925A
