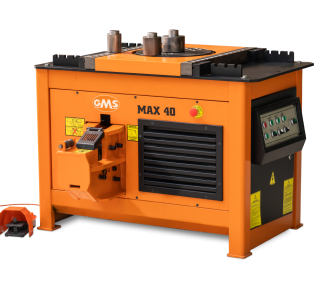

MAX 40

Maximum Performance Minimum Consumption
It is a machine that can conduct bending and cutting operations with hydraulic power conveyor system. In bending mode, there is a feature that allows 3 different angle adjustments simultaneously with the electrical system. The machine that can rotate clockwise and counter-clockwise 360 degrees can be controlled both automatically and manually. Equipments with different features can be attached on the machine in order to conduct different types of bending operations other than standard bending operations. It cannot conduct bending and cutting operations simultaneously. When the machine is operational, the engine works only when the foot pedal is pressed. Thanks to this feature, it provides a long life of hydraulic pump and controller and has low energy consumption.MAX 40, doing the work of two separate machines, is a useful machine preferred in construction sector.
Description
- Hydraulic
- Max: 32mm Cutting
- Max: 36mm Bending
- Low energy Consumption
Specifications
| WEIGHT | 70 KGS |
| DIMENSIONS | 78cm (L) x 60cm (W) x 100cm (H) |
| MOTOR POWER | 3-2, 2kW |
| VOLTAGE | - |
| ROTATION (RPM) | 3600 |
| FREQUENCY (Hz) | 50 |
| HYDRAULIC OIL TANK CAPACITY (LT) | 70 |
| BENDING CAPACITY 45KG/MM² (DIAMETER Ø X PIECE) | Ø32 x 1 | Ø18 x 2 |
| BENDING CAPACITY 65KG/MM² (DIAMETER Ø X PIECE) | Ø28 x 1 | Ø16 x 2 |
| BENDING CAPACITY 85KG/MM² (DIAMETER Ø X PIECE) | Ø24 x 1 | Ø14 x 2 |
| CUTTING CAPACITY 45KG/MM² (DIAMETER Ø X PIECE) | Ø36 x 1 | Ø24 x 2 |
| CUTTING CAPACITY 65KG/MM² (DIAMETER Ø X PIECE) | Ø32 x 1 | Ø20 x 2 |
| CUTTING CAPACITY 85KG/MM² (DIAMETER Ø X PIECE) | Ø28 x 1 | Ø18 x 2 |
