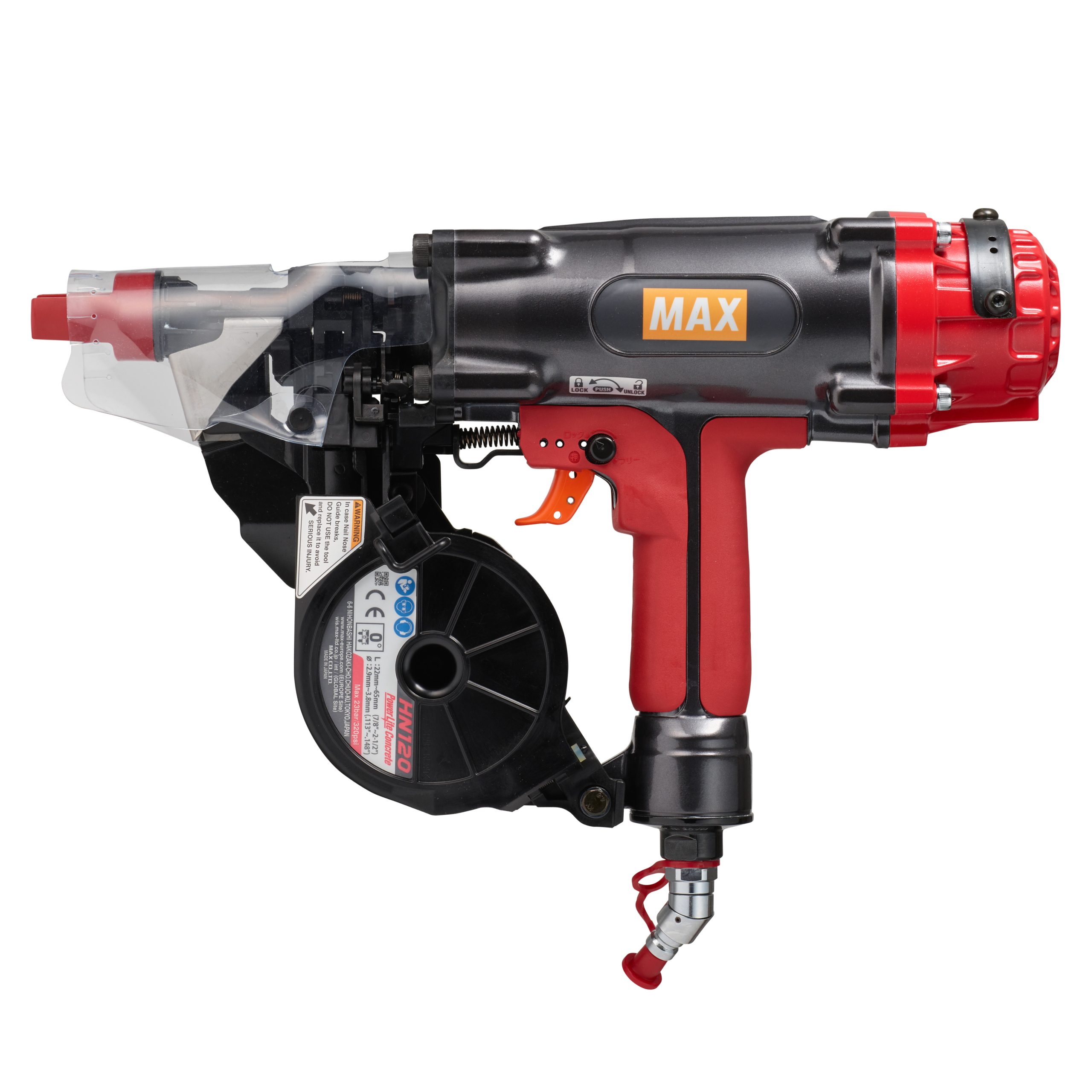

HN120

PowerLite High Pressure Concrete Pinner up to 65mm

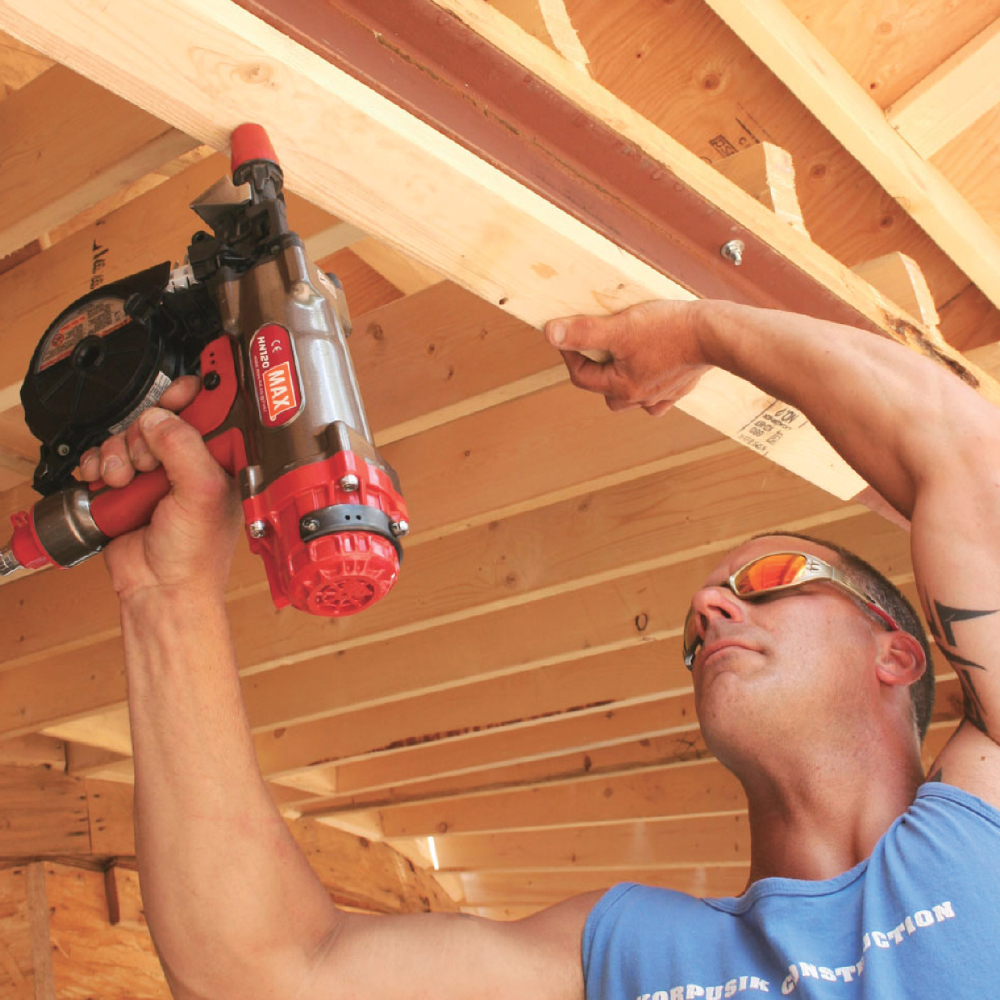

The MAX HN120 is a top of the line professional grade pneumatic concrete/steel pinner powered by MAX’s Powerlite compressor. The HN120 can be used for pinning wood to concrete, wood to steel I-beams, drywall track to concrete and steel I-beams, plywood to concrete and concrete furring. This tool is faster and more efficient than powder actuated tools. No license is required to operate.

Applications

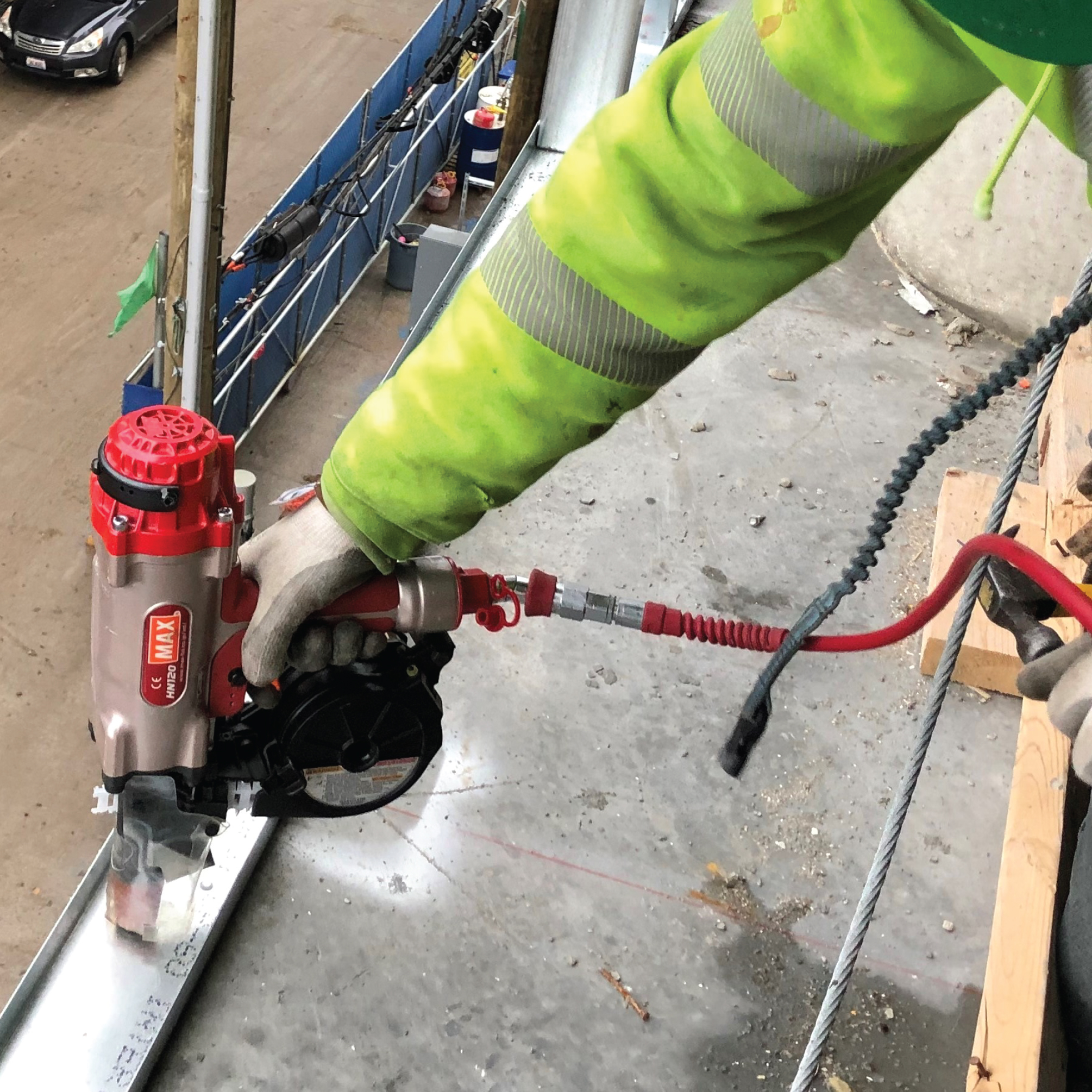

  • Metal track to concrete
  • Metal track to steel
  • Wood to concrete
  • Wood to steel I beam
SKU: HN120 Categories: , Tags: , , , , , , , , , , ,

Description

  • This extremely powerful high pressure MAX nail gun can shoot a variety of fasteners into wood, steel, or concrete.
  • 240J power without powder cartridge but operated high pressed air
  • The HN120 is a faster safer and a more cost effective alternative to powder actuated tools.
  • Tangle free swivel plug to alleviate the tangling of the air hose from every angle.

Specifications

WEIGHT 6.4 KG
DIMENSIONS 400mm (L) x 85mm (W) x 315mm (H)
MINIMUM OPERATION PRESSURE 15 bar
MAXIMUM OPERATION PRESSURE 24 bar
AIR INLET SIZE 7/16"
MAGAZINE CAPACITY 50
DEPTH CONTROL No
JAM CLEARING No
TRIGGER TYPE Sequential Fire Trigger
AIR CONSUMPTION (FT3/CYCLE) 0.166
