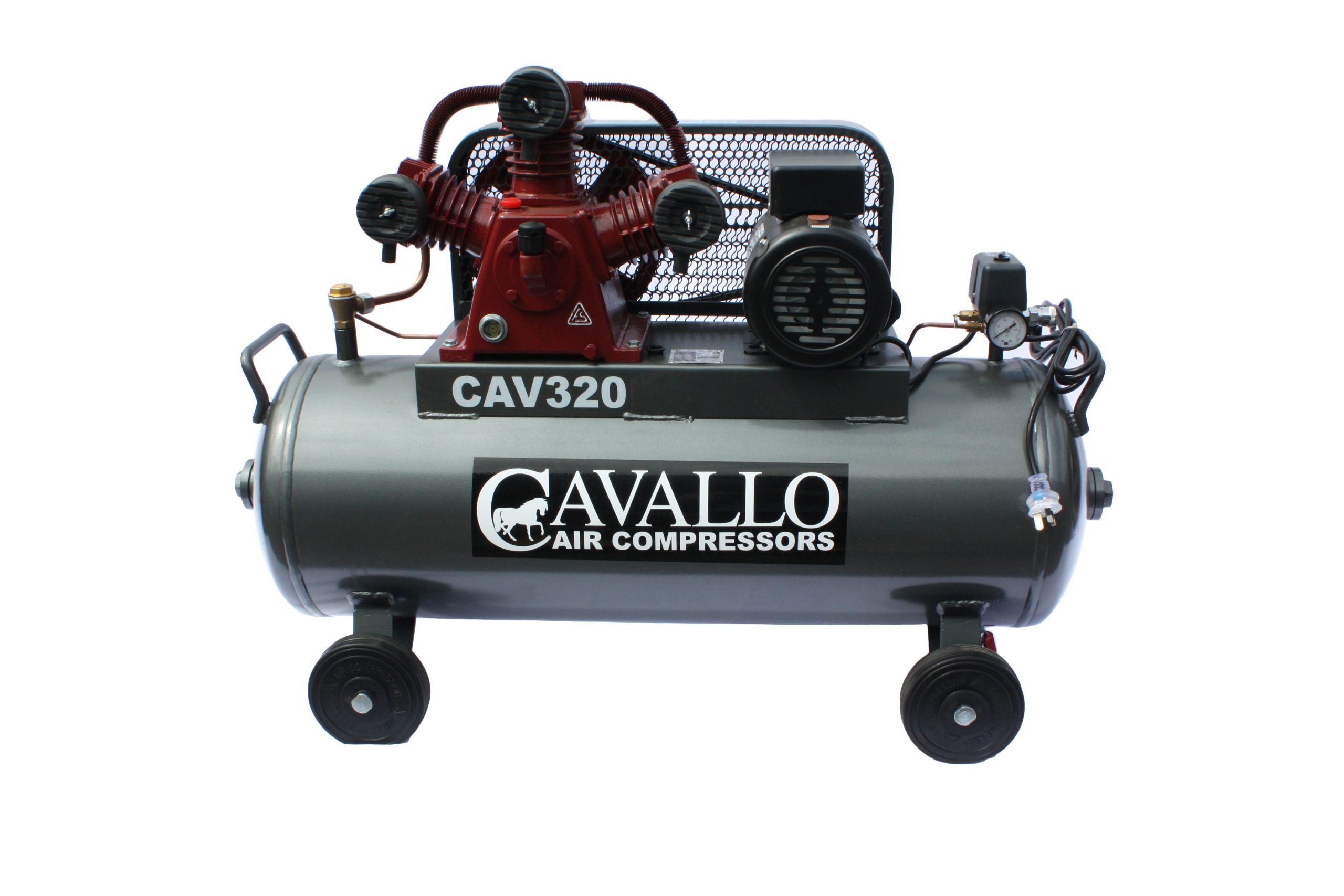

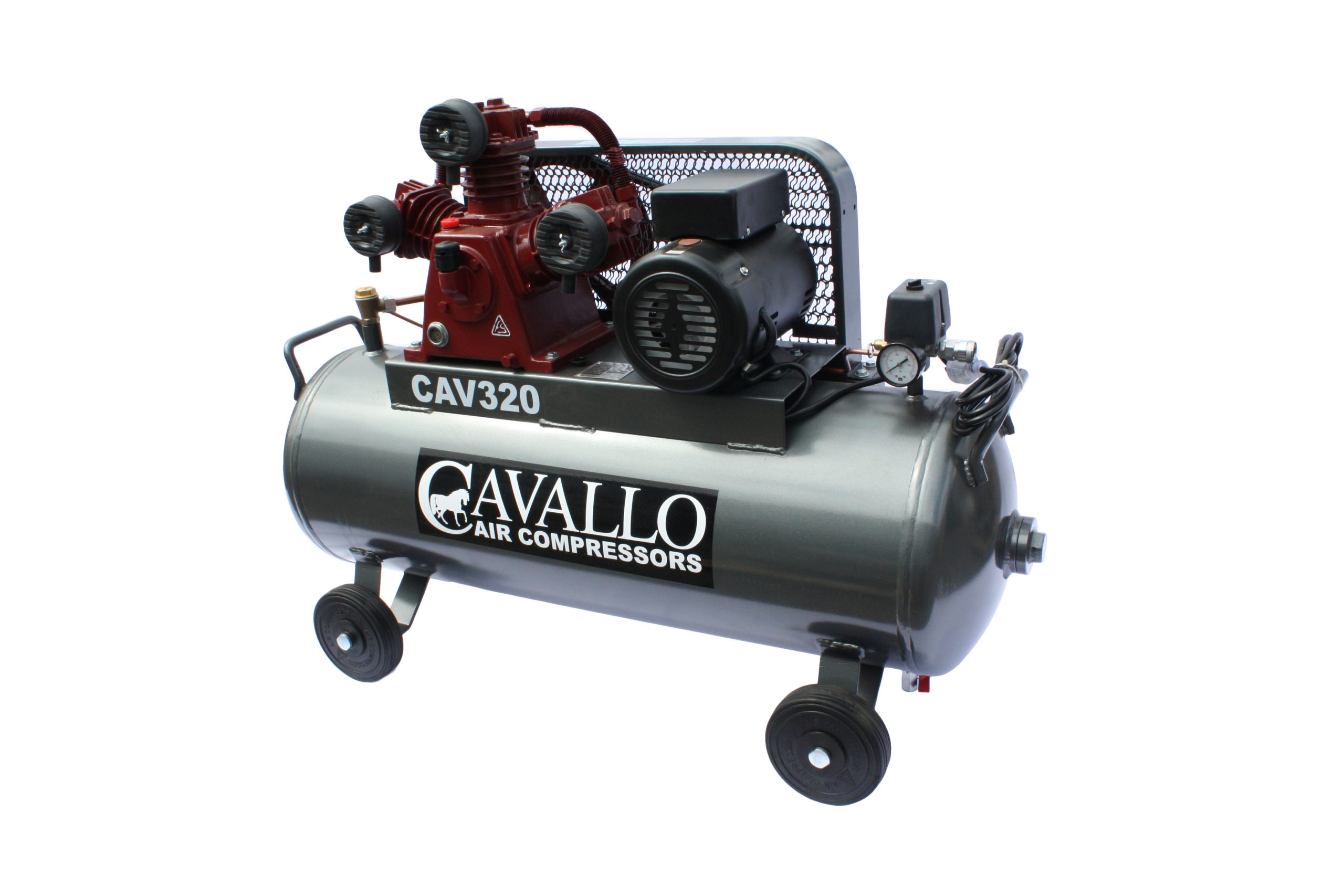

CAV320/120

3.2Hp Belt Drive Compressor
SKU: CAV320/120 Categories: , , Tag:

Description

  • Heavy Duty – Genuine TECO electric compressor duty motor. Specially designed with a heavy duty rolled steel frame, pressed steel fan cowl and capacitor cover, built-in thermal overload protection, and the highest quality capacitors and sealed bearing
  • High Quality Parts – Fully automatic motor control provided by a precision German made Condor pressure switch fitted with a soft-start unloader valve. The TT40 model also has an electronic dual DOL motor controller to minimize starting current and to ensure parallel motor operation under all load conditions.
  • Australian Made – Cavallo’s range of premium compressors are all Australian made and distributed and are fully compliant with Australian Safety Standards and Regulations for industrial workplace use.

Specifications

WEIGHT 145 KG
DIMENSIONS 1170mm (L) x 510mm (W) x 1080mm (H)
PUMP DISPLACEMENT 16.8 cfm. 310 L/min
FREE AIR DELIVERY 11 cfm. 310 L/min
MOTOR POWER 3.2hp. 2.40kW
REQUIRED CIRCUIT 15 Amps
TANK VOLUME 120L
NOISE LEVEL 81dB(A)
OUTLET SIZE 1/4" BSP
