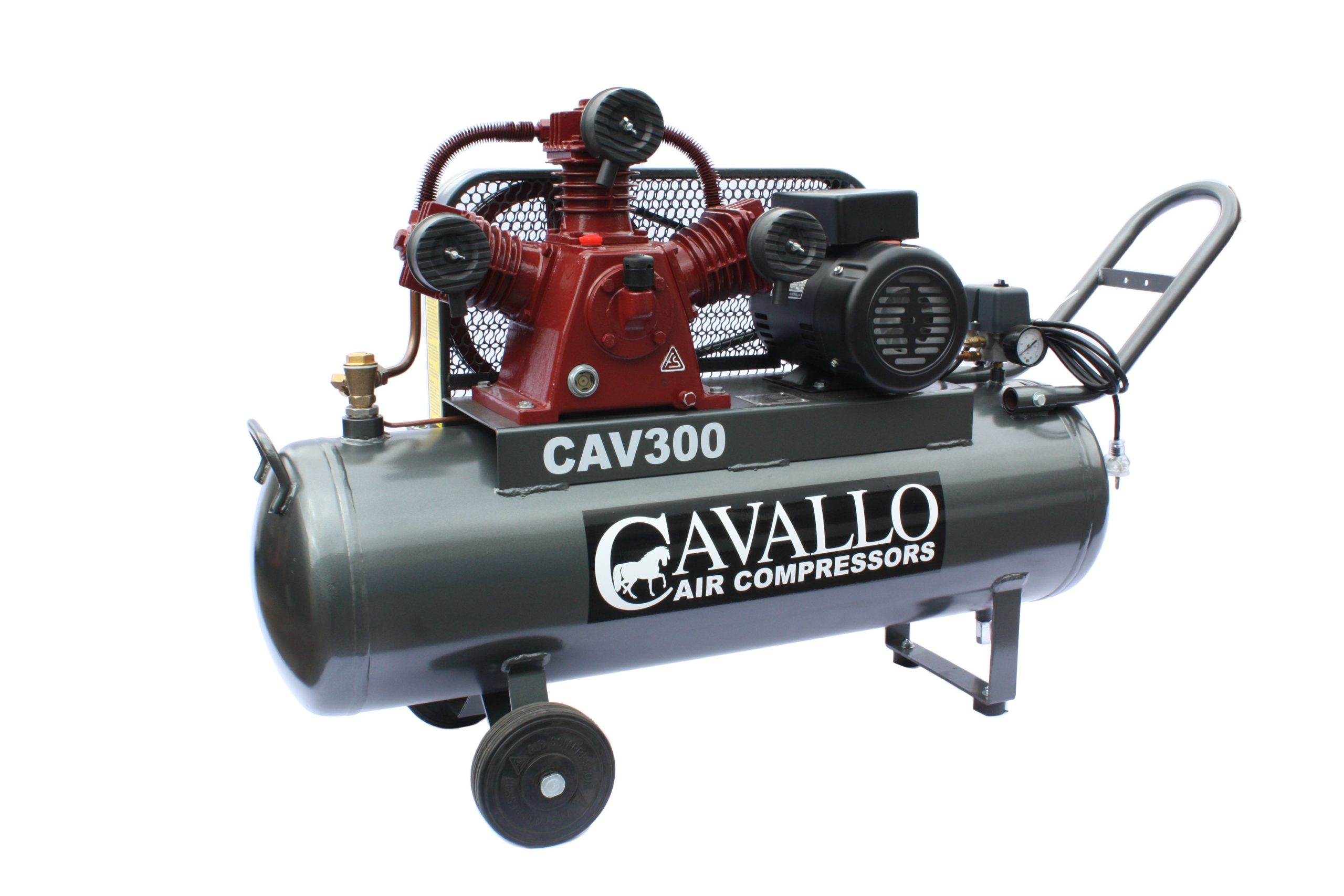

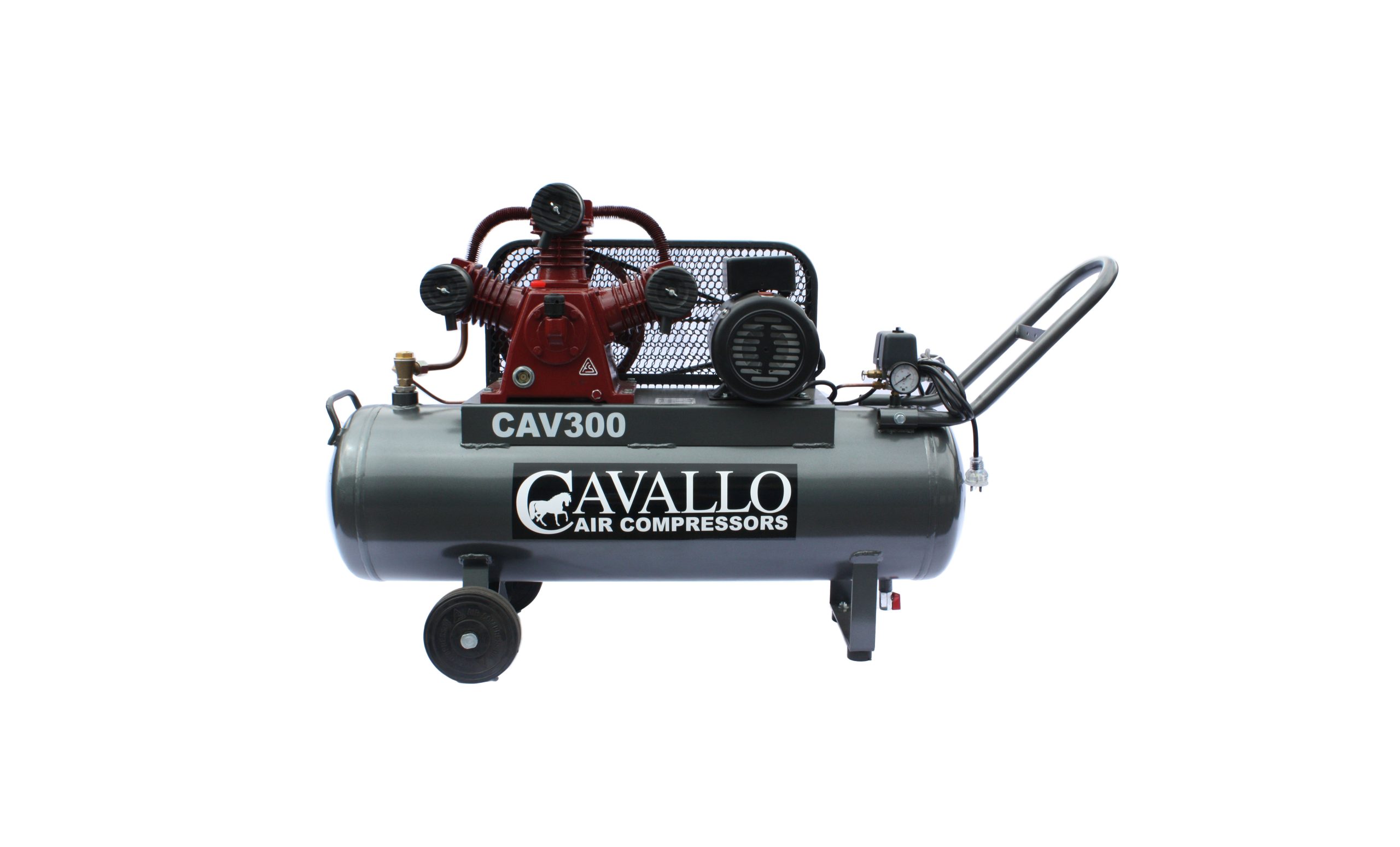

CAV300
3Hp Belt Drive Compressor
Description
- Heavy Duty – Genuine TECO electric compressor duty motor. Specially designed with a heavy duty rolled steel frame, pressed steel fan cowl and capacitor cover, built-in thermal overload protection, and the highest quality capacitors and sealed bearing
- High Quality Parts – Fully automatic motor control provided by a precision German made Condor pressure switch fitted with a soft-start unloader valve. The TT40 model also has an electronic dual DOL motor controller to minimize starting current and to ensure parallel motor operation under all load conditions.
- Australian Made – Cavallo’s range of premium compressors are all Australian made and distributed and are fully compliant with Australian Safety Standards and Regulations for industrial workplace use.
Specifications
| WEIGHT | 93 KG |
| DIMENSIONS | 1090mm (L) x 390mm (W) x 780mm (H) |
| PUMP DISPLACEMENT | 13.7 cfm. 387 L/min |
| FREE AIR DELIVERY | 9.0 cfm. 255 L/min |
| MOTOR POWER | 3hp. 2.20kW |
| REQUIRED CIRCUIT | 15 Amps |
| TANK VOLUME | 70L |
| NOISE LEVEL | 79dB(A) |
| OUTLET | 1/4" BSP |
