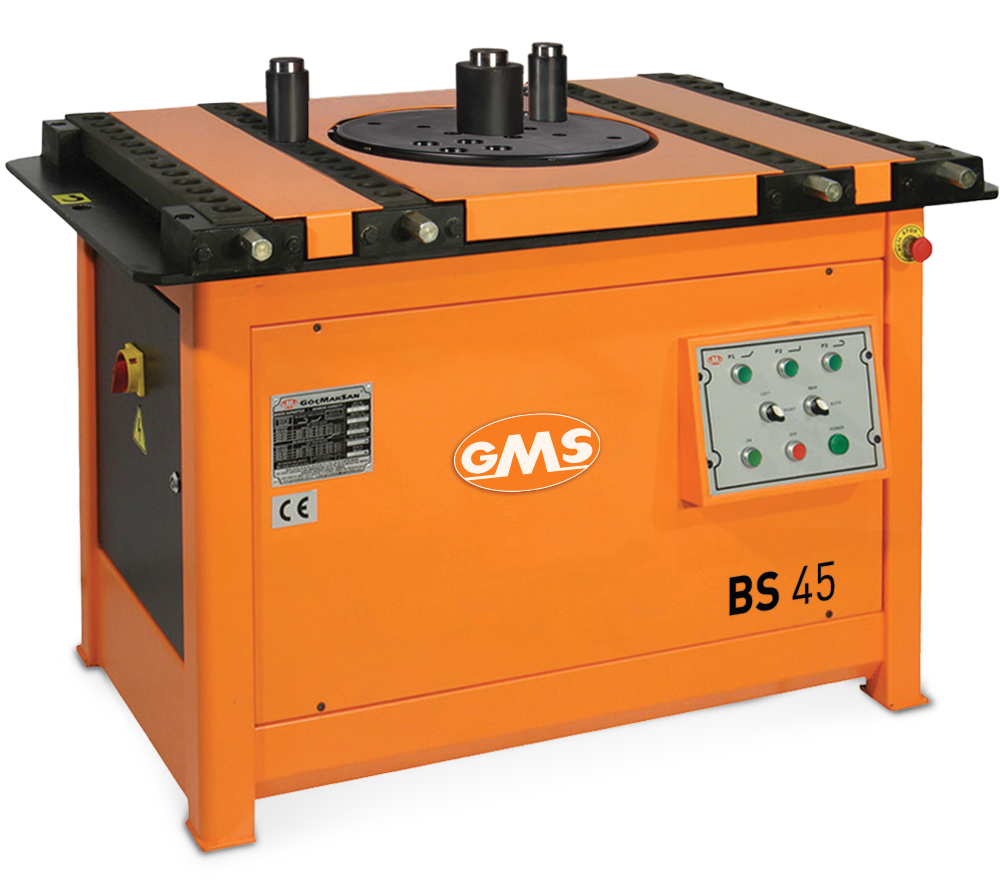

BS45

BS Series Rebar Bending Machine

These are machines working with mechanical and electrical automation system and are capable of double bending. The most needed angle settings in rebar bending (set-square, bent-bars, hook bends) can be easily achieved by inputting the desired angles via switch pins. The machine is capable of turning left and right and can be controlled manually or automatically. Other than the standardized bending, different types of bending (like stirrup, spiral bending) are also possible via installing different optional bending apparatus on the machine. It’s a machine that’s used in construction sites and rebar fabrication plants.

SKU: BS45 Category: Tag:

Description

  • Fast Bending with 2 bending sleeves
  • Turning Left & Right

Specifications

WEIGHT 462 KGS
DIMENSIONS 122cm (L) x 83cm (W) x 89cm (H)
MOTOR POWER 4kW
VOLTAGE 380
ROTATION (RPM) 1450
FREQUENCY (HZ) 50
BENDING CAPACITY 45KG/MM² (DIAMETER Ø X PIECE) Ø45 x 1 | Ø30 x 2
BENDING CAPACITY 65KG/MM² (DIAMETER Ø X PIECE) Ø40 x 1 | Ø26 x 2
BENDING CAPACITY 85KG/MM² (DIAMETER Ø X PIECE) Ø32 x 1 | Ø20 x 2
